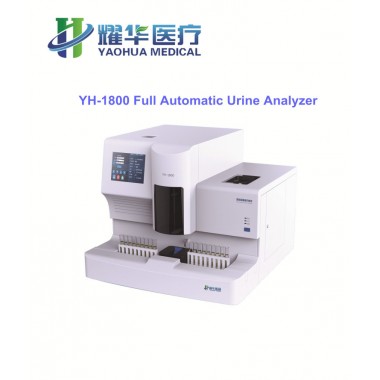

Description of YH-1800 full automatic urine analyzer

YH1800 full automatic urine analyzer is a high accuracy instrument for clinical detection of urine which uses microprofessor technology,photoelectric technology research.It is operated by color touch screen which has high intelligent degree and accurate result.

Product features

1. Color touch screen display,menu operation interface,convenient operation.

2. New cold light sourcing testing technology,strong anti-interference,high sensitivity,good stability.

3. The instrument includes 8-inch color touch LCD screen,built-in printer and built-in bar-code scanner(optional),it could identify sample position and information automatically which could improve efficiency.It could accommodate more than 200pcs urine strips at one time.

4. Automatic sampling device is compatible with automated assembly line,it could be connected with automatic urine sediment analyzer to form pipeline system.

5. The sample do not need centrifugation or pretreatment.The instrument would test automatically if put the sample rack inside.

6. Emergency insertion function,the instrument would give priority to deal with the emergency sample without stopping the routine detection.

7. The instrument could add sample intelligently according to the urine strip reaction block which ensure the uniformity and sufficiency of reaction.

8. Accurate quantitative sampling technology,which avoids cross pollution between projects.

9. The instrument can do quantitative analysis to SG,it could test the sample color and turbidity.

10. The instrument can accommodate 120 samples.

11. A complete alarm system.

12. A function of calibration and quality controls.

13. The standard RS-232 interface with function of being connected to the LIS and HIS system.

14. Adopts 32-bit RISC micro-controller to minimize extra components and maximize reliability.

15. Adopts bipolar high performance bipolar stepper motor.

16. Adopts the newest high flux white LED for high system signal to noise ratio and longer life.

17. Adopts power adapter of professional manufacturer for safety and adaptability.

18. Uses flash memory. Data is saved simultaneously as testing progresses. No data is lost after shutting down or power out.

19.Stores up to 10000 results. Sorts by dates and categories for convenient management.

20. Software upgrade can be done by connecting the analyzer to a computer through the parallel ports on the rear side.

21. Infrared sensor detects the motion of operator placing a prepared strip on the feed table to start the test.

22. Equipped with waste box to collect and store used strips.

23. Waste plate collects and stores extra liquid to minimize the pollution to the machine
