Shandong Yaohua Medical Instrument Corporation

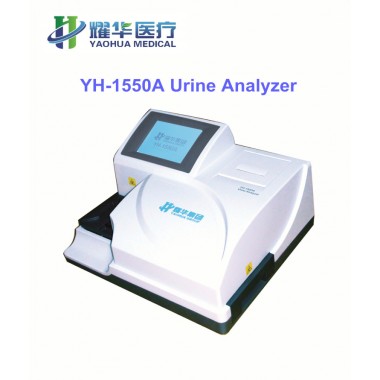

Chemistry Urine Analyzer YH-1550

YH-1550 urine analyzer is semi-automatic instrument which uses microprocessor and photoelectric technology. It uses color touch screen operation, has high intelligence degree and the accurate result. The instrument is composed of shell, power supply, transmission system, measuring system and color touch screen, bar code scanner, thermal printers, serial and parallel parts.

The features of YH-1550
1. Test speed :515 / hour
2. The data store capacity: 2000 test records
3. Language :English and Chinese, others can also be added.
4. The operating environment:Altitude ≤2000 m , temperature 15 ℃ ~ 35 ℃, temperature 20 ℃ to 25 ℃, relative humidity ≤80%
5. External output :RS - 232 serial interface, parallel interface printing
6. Bar code link: bar code reader
7. Transfer rate: 14400 BPS, 9600 BPS, 4800 BPS, 9600 BPS
8. Power: AC 220/110 v + 22 v, 50 hz + 1 hz
9. Fuse specification:250 v 1 a fuse specifications
10. Work rate :40 va
11. Weight :7.0 Kg
12. Overall dimensions :390mm * 330 mm * 210 mm
13. Printer :Built-in thermal printer, can be connected the external stylus printer.
14. Test strip:10A,11A,12A,13A,14A urine test strip.
